COG 128X64 SPI Graphical Display LCD , ST7565 STN LCD Display

Name: COG 128X64 SPI Graphical Display LCD ST7565 STN LCD Display
Brand: HOTHMI
Price: 1 USD

Quality COG 128X64 SPI Graphical Display LCD , ST7565 STN LCD Display wholesale

Brand Name : HOTHMI

Model Number : HTM12864-23

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : COG LCD Module with Panel

Display content : 128x64 dot

Product Application : stage controller, instrumentation

Viewing Angle : 6H

Number of PINS : 16PIN

Special Instructions : MCU/8bit/SPI

IC : ST7565

Contact Now

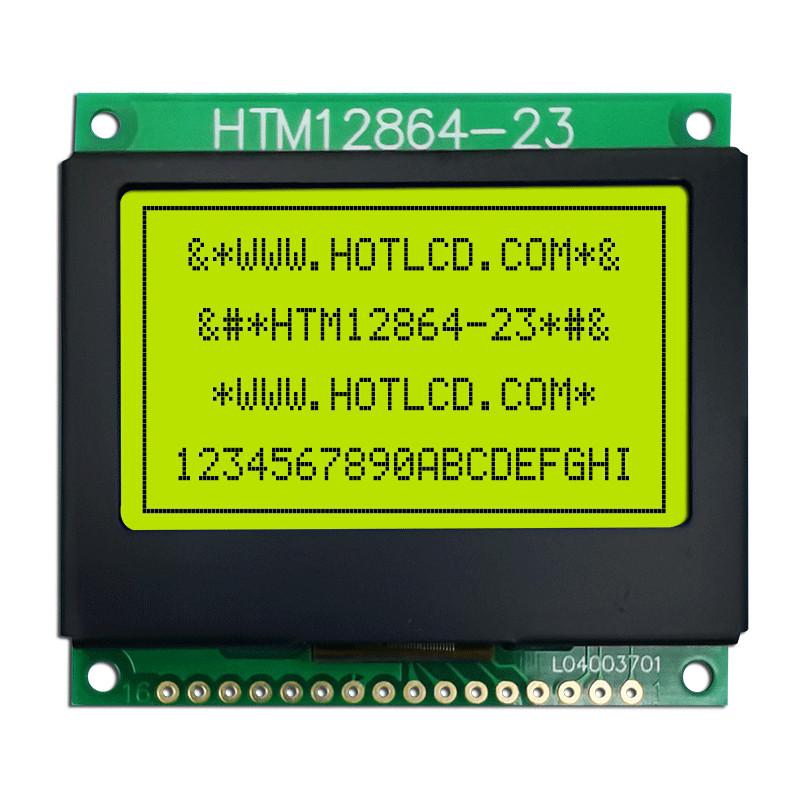

128X64 Graphic LCD Module | STN | Display With White Backlight | HTM12864-23

Product parameters

Product Type - COG LCD Module with Panel
Display Content - 128x64
Product application - stage controller, instrumentation
Viewing Angle - 6H
Backlight Type or Brightness - Yellow Green
Connection method PIN number - 16PIN
Interface Mode - MCU
Special Instructions - MCU/8bit/SPI
Working temperature - -20~70℃

Interface Pin Function

Pin No.	Pin Name	Function
1	DB0	Data Bus 0
2	DB1	Data Bus 1
3	DB2	Data Bus 2
4	DB3	Data Bus 3
5	DB4	Data Bus 4
6	DB5	Data Bus 5
7	DB6(SCL)	Data Bus 6 (If P/S=”L”,D6 is SCLK)
8	DB7(SI)	Data Bus 7 (If P/S=”L”,D7 is SI)
9	VDD	LCD Positive(3.3V)
10	VSS	LCD Negative(VSS)
11	LEDA	Backlight Positive(3.3V)
12	/CS	Chip selection input
13	/REST	Reset Signal input
14	A0(R/S)	Data/Command control input
15	/WR(R/W)	Write Signal Input (If P/S =”L”,/WR(R/W) connected to VDD)
16	/RD(E)	Read Signal Input ( If P/S =”L”,/RD(E) connected to VDD)

Mechanical Data

Item	Standard Value	Unit
Module Dimension	54.6x50.0x9.1	mm
Viewing Area	45.2x27.0	mm
Mounting Hole	40.93x24.29	mm
Dot Pitch	0.38x0.32	mm
Dot Size	0.34x0.28	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3.3	V

Absolute Maximum Ratings

Items	Symbol	MIN.	MAX.	Unit	Condition
Supply Voltage	V_DD	-0.3	+3.3	V	V_SS = 0V
Supply Voltage	Vlcd	-0.3	+17.0	V	V_SS = 0V
Input Voltage	V_IN	-0.3	V_DD+0.3	V	V_SS = 0V
Operating Temperature	T_OP	-20	+70	℃	No Condensation
Storage Temperature	Tst	-30	+80	℃	No Condensation

Electrical Characteristics

Items	Symbol	MIN.	TYP.	MAX.	Unit	Condition
Operating Voltage(1)	V_DD	2.4	-	3.6	V
Operating voltage (2)	V0	4.5	-	15	V
Input High Voltage	V_IH	0.8 x V_DD	-	V_DD	V
Input Low Voltage	V_IL	V_SS	-	0.2 x V_DD	V
Output High Voltage	V_OH	0.8 x V_DD	-	V_DD	V	IOH = -0.5mA
Output Low Voltage	V_OL	V_SS	-	0.2 x V_DD	V	IOL = 0.5mA
Operation Current	I_op	-	100	200	μA	VDD=3.0
Sleep Current	Isl	-	0.1	5	μA	Ta = 25°C
Standby Mode	IDD	-	5	10	μA	Ta = 25°C

Items	Symbol	MIN.	TYP.	MAX.	Unit	Condition
Forword Voltage	Vf BLA	-	2.9	-	V	Without Resister
Forword Current	If BLA	-	45	50	mA	-

COG 128X64 SPI Graphical Display LCD , ST7565 STN LCD Display

HTM12864-23-25W-N3P.pdf
